AQmesh – Air Quality Monitoring System Device
1. AQmesh
AQmesh Device adalah alat untuk mengukur polutan utama di udara ambient, baik di luar maupun di dalam ruangan. Menggunakan teknologi sensor kecil terbaik yang dikombinasikan dengan pemrosesan data yang berasal dari perbandingan global yang luas dengan data referensi.
Alat ini didesain sesuai dengan Regulasi pemerintah dalam pengukuran ambient yang mengacu sesuai PERATURAN MENTERI LINGKUNGAN HIDUP DAN KEHUTANAN REPUBLIK INDONESIA NOMOR P.14/MENLHK/SETJEN/KUM.1/7/2020 TENTANG INDEKS STANDAR PENCEMAR UDARA (ISPU) yang terbaru, parameter yang diujikan adalah sebagai berikut:
- partikulat PM10
- partikulat PM2.5
- karbon monoksida (CO)
- nitrogen dioksida (NO2)
- sulfur dioksida (SO2)
- ozon (O3)
- hidrokarbon (HC)

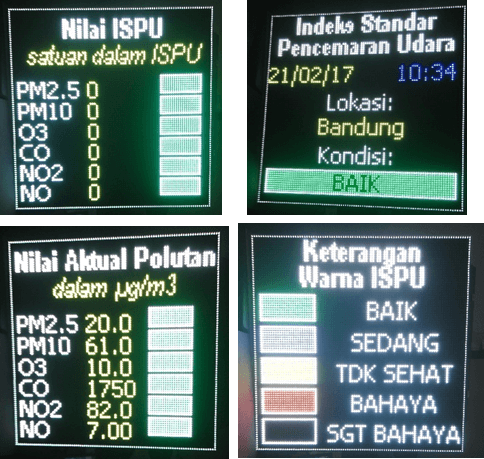

Data Monitoring AQmesh
Spesifikasi:
| Parameters measured | NO, NO2, O3, CO, SO2, Pod temperature, atmospheric pressure, relative humidity, particle count, PM 2.5, PM 10 | ||
| Measurement range | Parameter | Units of measurement | Range |
| NO | ppb or µg/m3 | 0 to 4,000 ppb | |
| NO2 | ppb or µg/m3 | 0 to 4,000 ppb | |
| NOX | ppb or µg/m3 | 0 to 8,000 ppb | |
| O3 | ppb or µg/m3 | 0 to 1,800 ppb | |
| CO | ppb or µg/m3 | 0 to 6,000 ppb | |
| SO2 | ppb or µg/m3 | 0 to 10,000 ppb | |
| Pod temperature | ºC | -20 to 100 ºC | |
| Pressure | mb | 500 to 1500 mb | |
| Humidity | % | 0 to 100 %RH | |
| Particle count | Particles/cm3 | 0.5 – 30 µm | |
| PM 2.5 | µg/m3 | 0 – 500 µg/m3 | |
| PM 10 | µg/m3 | 0 – 1,000 µg/m3 | |
| Performance | Parameter | Limit or detection | Accuracy (in standard test conditions) |
| NO | < 5 ppb | ± 5 ppb | |
| NO2 | < 10 ppb | ± 5 ppb | |
| CO | < 5 ppb | ± 5 ppb | |
| O3 | < 5 ppb | ± 5 ppb | |
| SO2 | < 10 ppb | ± 5 ppb | |
| Pod temperature | 0.1 ºC | ± 2 ºC | |
| Pressure | 1mb | ± 5 mb | |
| Humidity | 1%RH | ± 5 %RH | |
| Sensor life | Up to 2 years | ||
| Power options | Primary lithium metal batteries. Up to 2 years operation (depending on measurement strategy)
Main power option, External 12V DC power option, Rechargeable NiMH battery and charger option |
||
| Communications | Raw data sent to remote server via wireless communications – Data access contract may be required | ||
| Physical | · Enclosure: Polyurethane mouided or ABS, protection IP65
· Approx. Size: L170xW22xH250mm (not inc. Antenna 180mm) · Weight: <2Kg |
||
| Environmental | · Temperature range: -20 to +40 Deg C
· Humidity range: 15 to 85% RH |
||
| Mounting | Various mounting accessories available | ||
| Measurement period | Variable, from 1 minute to 1 hour (1 Hour set as default) | ||
| Server software | Web browser based, processing of raw data to give indicative concentration, database storage on secure server, data access – table, graphs, data download, multi-user access, password controlled | ||
Harga: (hubungi kami)
