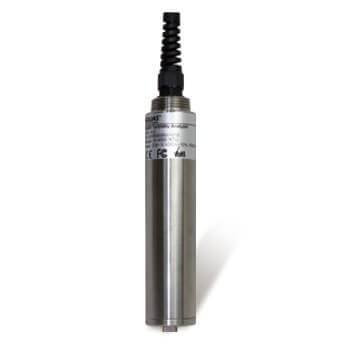

Chlorophyll A Analyzer
Features:
- Solution Without Cabinet, Robust IP 68 Water Submersible Enclosure
- On-line Real time Measurement 1 second
- Ideal for Outdoor Applications , 0.02 W Ultra Low Power Consumption
- Temperature Compensation
- Drift Free, High Reliability
- RS 485 Communication, Lightening and Surge Protection for Power
- Engineering Cost , Minimize Cabling and 1.2 Km RS 485 Digital Communication
- Data Monitoring and Software Configuration Calibration
- Distribute to various fields sites and onboard memory allowing users to easily calibrate and configure sensor at lab
- Eliminate I/O Module Cost , HMI , Standard Mod bus RTU Protocol , Direct Connected with PLC
Specification:
| Measurement range | 0 – 500 μg/L |
| Accuracy | ± 3% FS |
| Resolution | 0.01 μg/L |
| Repeatability | ± 1% FS |
| Light source | LED 460 nm |
| Operation pressure | Max.10 Kg f/cm2 |
| Operating Temperature | 0 – 85 °C |
| Process flow rate | Min. 0.1 m/sec |
| Response time | 3 sec |
| Protection | IP 68 |
| Temperature sensor | Pt 100 |
| Temperature measurement range | 0~85°C |
| Temperature accuracy | ± 0.5 °C; ± 0.1 °C (Optional) |
| Housing | SS 316 L; Titanium |
| Dimension | 35 Χ 215 mm |
| Weight | Analyzer: approx. 500 g; Cable: 80 g/m |
