Total Organic Carbon Analyzer

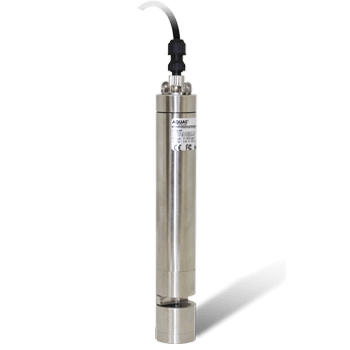

Total Organic Carbon Analyzer Sensor Cakrawala Bima Instrument

Features:

  • Solution Without Cabinet , Robust IP 68 Water Submersible Enclosure
  • On-line Realtime Measurement  1 second
  • Ideal for Outdoor Applications, 0.2 W Ultra Low Power Consumption
  • Drift Free , High Reliability
  • RS 485 Communication , Lightening , Surge Protection for Power
  • Minimize Cabling , 1.2 Km RS 485 Digital Communication, Engineering Cost
  • Data Monitoring , Software Configuration Calibration
  • Eliminate I/O Module Cost, Direct Connected with PLC , HMI, Standard Modbus RTU Protocol
  • Almost No Maintence, Auto Cleaning Wiper
  • Sapphire Glass Lenses to Prevent Scratch
  • Configure sensor at lab , onboard memory allowing users to easily calibrate , distribute to various fields sites
  • Prevent Noise Caused by Bubble , Pressurized Flow Chamber
  • Distribute to various fields sites , configure sensor at lab , onboard memory allowing users to easily calibrate
  • Turbidity Compensation



Specification:

Measurement range 45-1: 0 – 25 mg/L
45-2: 0 – 100 mg/L
45-3: 0 – 500 mg/L
45-4: 0 – 2,500 mg/L
45-5: 0 – 10,000 mg/L
Accuracy ± 5% in standard solution ± 1 mg/L
Resolution 0.01 mg/L
Repeatability ± 3% in standard solution ± 1 mg/L
Light source LED 254 nm
Beam angle 180°
Light path length 1 mm, 2 mm, 5 mm, 10 mm, 35 mm
Process flow rate Max. 3 m/sec
Operation pressure Max. 10 Kg f/cm2
Operating temperature 0 – 85 °C
Response time < 1 min
Protection IP 68
Temperature sensor Pt 100
Temperature measurement range 0 – 85 °C
Temperature accuracy ± 0.5 °C ; ± 0.1 °C (Optional)
Turbidity sensor LED 880 nm
Turbidity measurement range 45-1: 0 – 50 NTU (or 0 – 100 mg/L)
45-2: 0 – 500 NTU (or 0 – 1,000 mg/L)
45-3: 0 – 2,000 NTU (or 0 – 5,000 mg/L)
45-4: 0 – 4,000 NTU (or 0 – 10,000 mg/L)
45-5: 0 – 10,000 NTU (or 0 – 20,000 mg/L)
Total suspended solids accuracy ± 5% FS
Housing SS 316 L; Titanium
Dimension 40 Χ 240 mm
Weight Analyzer: approx. 1 Kg; Cable: 80 g/m
