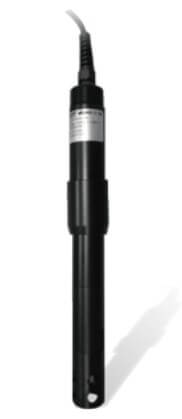

pH Analyzer
pH Analyzer terhubung langsung melalui antarmuka komunikasi RS485, menyediakan data proses yang sederhana, andal, hemat biaya dengan pemantauan jarak jauh, kalibrasi, konfigurasi, dan kemampuan diagnostik.
Alat penginderaan terdiri dari elektroda pH, penguat sinyal, dan elektroda referensi. Elektroda penginderaan pH bertindak sebagai transduser yang menghasilkan dan mengirimkan berbagai tingkat tegangan berdasarkan konsentrasi ion hidrogen bebas dalam air. Penguat meningkatkan sinyal sehingga dapat diukur.
[wptab name=’Fitur’]
- Locally available memory enabling clients to effectively adjust, arrange sensor at lab, and convey to different fields destinations
- Limit cabling and engineering cost and 1.2 km rs 485 digital communication
- Float free and high reliability
- Arrangement without cabinet and robust ip68 water submersible enclosure
- Dispense with i/o module cost, direct connected with plc, hmi, and standard modbus rtu protocol
- Online real time measurement
- Rs 485 communication and surge protection for power
- Perfect for outdoor applications and ultra low power consumption
- Temperature compensation
- Information monitoring and software configuration calibration
[/wptab]
[wptab name=’Spesifikasi’]
| pH sensor | |
| Measurement range | 0 ~ `4 pH |
| Accuracy | ± 0.01 pH |
| Resolution | 0.01 pH |
| Repeatability | ± 0.01 pH |
| ORP sensor | |
| Measurement range | -2,000 ~ 2,000 mV |
| Accuracy | ± 5 mV |
| Resolution | 0.1 mV |
| Repeatability | 0.5 mV |
| Operation pressure | Max. 2 Kgf/cm² ; Max. 10 Kgf/cm² |
| Operating temperature | 0 ~ 85 °C; -5 ~ 110 °C (optional) |
| Process flow rate | 0.1 l /min |
| Response time | 1 second |
| Protection | IP 68 |
| Temperature sensor | PT 100 |
| Temperature measurement range | 0 ~ 85 °C |
| Temperature accuracy | ± 0.5 °C; ± 0.1 °C (Optional) |
| Sensor material | Glass |
| Process connection | M 26 x 1.5 |
| Housing | POM |
| Dimension | 40 Χ 360 mm |
| Weight | analyzer: approx. 150 g (POM); 500 g (SS316L); 400 g (Titanium) cable: 80 g/m |
[/wptab]
[end_wptabset]
