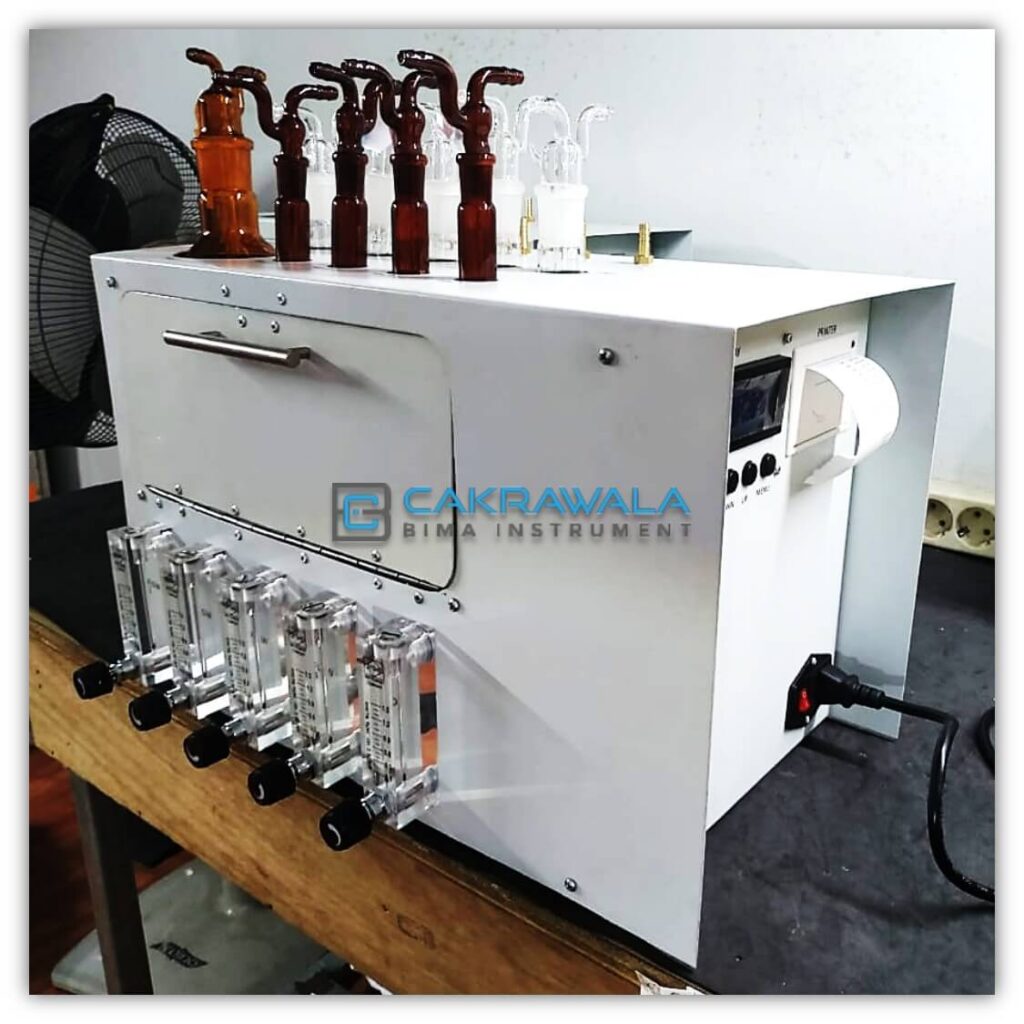

Portable Gas Sampler (AGIS) tipe HU-POT terdiri dari kereta sampling 5 tabung impinger dan manifold katup 5 arah untuk kontrol aliran independen untuk setiap tabung impinger. Alat ini memfasilitasi sampling simultan dari 5 gas.
Instrumen ini lengkap, ringan dan hadir dengan pilihan operasi baterai (B) atau listrik (M).
Pereaksi yang sesuai ditempatkan dalam tabung impinger untuk menjebak polutan tertentu yang diinginkan. Larutan penyerap dianalisis di laboratorium untuk menentukan konsentrasi polutan spesifik.
PERATURAN:
Regulasi pemerintah dalam pengukuran ambient gas impinger sampler mengacu kepada PERATURAN PEMERINTAH REPUBLIK INDONESIA NOMOR 41 TAHUN 1999 mengenai PENGENDALIAN PENCEMARAN UDARA , diatur jenis debu dan gas yang harus diukur dengan interval waktu tertentu. Gas NO2, SO2, O3, CO dan debu (Particulate matter) merupakan parameter wajib yang harus diukur.
Fitur:
Dilengkapi controller dengan lcd 4 baris @20 karakter untuk menampilkan RH (Relative Humidity), temperature, dan pressure, untuk setting
Dapat diatur waktu start secara bersamaan dan berhenti secara acak setiap pompa
Dilengkapi sensor temperatur, rh, dan barometric pressure
Dilengkapi printer thermal
Dapat di print out pembacaan sensor sebanyak sampling yg di atur pada controller
Print out settingan waktu gas sampling setiap glass impinger
Terdapat rotameter yang dilengkapi valve di setiap pump dengan spesifikasi: tekanan pompa vacuum dapat di atur dengan potensio multiputar presisi, yg dapat diputar lebih dari satu putaran
Main Controller Gas Sampler:
a. Power: 7 W
b. Rated Current: ≤ 500 mA
c. Degree of Vacuum: 50 KPA
d. Pressure: Gas 100 KPA
e. Flow: Gas 3 LPM
f. Noise: ≤ 55 dB
g. LCD: Display
Printer:
a. Printing Method: Thermal
b. Resolution: 8 Dots/ mm, 384 dots/ line
c. Effective Print Width: 48 mm
d. Character set: ASCII, GB2312-80
e. Print Fonts: ANK: 5 x 7
f. Paper type: Thermal Paper
g. Paper Width: 57.5 +/- 0.5 mm
h. Roll Diameter: 30 mm (max)
i. Reliability: Mean Cycle Between Failure (MCBF) 500 Million
j. Lines Interface: Serial (RS-232, TTL)
k. Parallel Embed Depth: 43 mm
l. Power Supply (Adapter): DC 5V – 9V
m. Installation Port Size: 77 x 53 mm
n. Operating: Temperature: 5 ~ 50 °C ; Humidity: 10% ~ 80% RH
p. Storage: Temperature: -20 ~ +60 °C ; Humidity: 10% ~ 90% RH
Barometric Pressure Sensor: Barometric Pressure Sensor AGIS – Bar
Humidity & Temperatur Sensor:
a. Power Supply: 3.3 – 5.5V DC
b. Sensing Element Polymer Humidity: capacitor
c. Operating Range: Humidity: 0 – 100% RH ; Temperature: -40 ~ 80 °C
f. Accuracy: Humidity: ±2% RH (Max ±5% RH) ; Temperature: ±0.5 °C
g. Resolution or Sensitivity: Humidity: 0.1% RH ; Temperature: 0.1 °C
h. Repeatability: Humidity: ±1% RH ; Temperature: ±0.2 °C
i. Humidity Hysteresis: ±0.3% RH
j. Long term Stability: ±0.5% RH/year
k. Interchangeability Fully Interchangeable
GPS
a. Receiver type: 72-channel u-blox M8 engine ; GPS/QZSS L1 C/A, GLONASS L10F ; BeiDou B1I, Galileo E1B/C ; SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
b. Nav. update rate: Single GNSS: up to 18 Hz ; 2 Concurrent GNSS: up to 10 Hz
c. Positition accuracy: 2.0 m CEP
d. Acquisition: Cold starts: 26 s ; Aided starts: 2 s ; Reacquisition: 1 s
e. Sensitivity: Tracking & Nav.: 167 dBm ; Cold starts: 148 dBm ; Hot starts: 157 dBm
f. Oscillator: TCXO
g. RTC crystal: Built-In
h. Anti jamming: Active CW detection and removal. Extra onboard SAW band pass filter
i. Memory: ROM
j. Supported antennas: Active and passive
