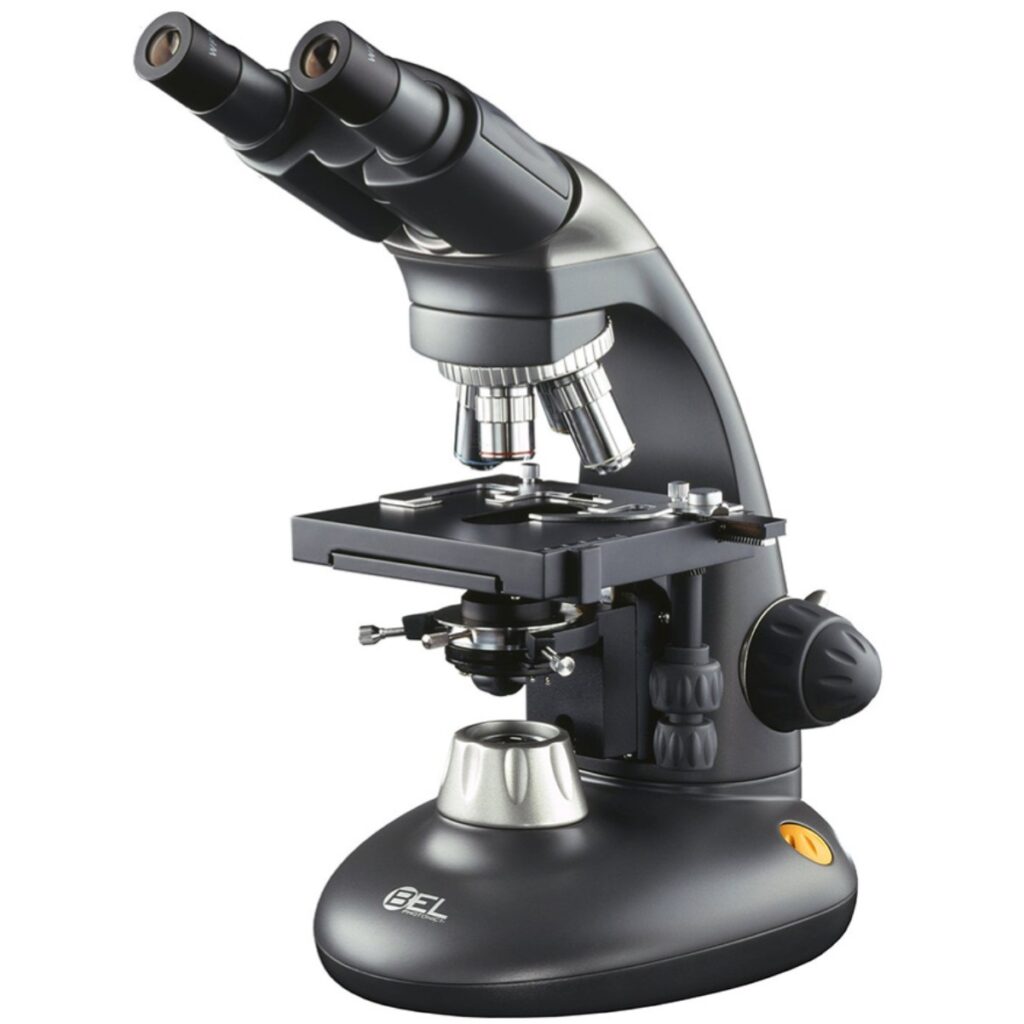

Mikroskop Biologi – BEL Engineering Type BIO2

Mikroskop Biologi - BEL Engineering Type BIO2

Mikroskop Biologi - BEL Engineering Type BIO2



Produk: Mikroskop Biologi

Merek: BEL Engineering

Tipe: BIO2 Binocular/Trinocular

Negara: Italia

Seri BIO2 adalah garis inovatif mikroskop biologis dengan gaya keren dan dengan sistem optik yang cocok untuk sebagian besar aplikasi mikroskop laboratorium.

Faktanya, mikroskop biologis ini telah terpasang iluminator Koehler standar, lensa mata lebar, 5 tempat nosepiece miring ke dalam, dan bohlam halogen atau LED.

Semua ini, dikombinasikan dengan desain Italia yang disempurnakan, dudukan aluminium yang ergonomis dan mantap serta dengan DIN16Omm atau INFINITY achromatic / semiplan / plan-achromatic, memberikan mikroskop ini memiliki kemampuan untuk mencocokkan berbagai aplikasi dari penggunaan pendidikan hingga rutin.


Optical system Standard DIN 160mm system
Illumination Built-in transmitted Koehler illumination with field diaphragm.
6V 20W Halogen bulb or High intensity LED.
Adjustable Intensity.
Eyepieces Wide field WF10x/18mm
Objectives -AC ACHROMATIC 4x/0.1;  10x/0.25;  40x/0.65;  100x/1.25 (oil immersion)
-PL PLAN ACHROMATIC 4x/0.1;  10x/0.25;  40x/0.65;  100x/1.25 (oil immersion)
Focusing Macrometric and micrometric coaxial knobs on both sides (0,002mm). Upper limit excursion adjustment. Torque adjustment on coarse focus knob
Revolving nosepiece Reversed quintuple nosepiece, rotating and locking at every objective.
Observation tube Type Binocular Trinocular
Tube inclination 30° tilted, 360° rotable
Interpupillary distance adjustment 55-75mm, dioptric difference adjustment ± 5mm
Light division 70% : 30%
Stage 135x125mm. Excursion XY: 75x35mm (div 0,1mm). Coaxial knobs on right side.
Condenser Abbe N.A. 1,25. Equipped with diaphragm and filter seat. Height and centering are adjustable.
  • Phase contrast kit (achromatic or plan) (MB05001 5/6)
  • Dark field condenser (dry or immersion) (MB030003)
  • Micrometric slide 0.01mm (MB120001)
  • Micrometric eyepiece 10x (MB010007)
  • Eyepiece 16x (MB010005)
  • 20x Plan achromatic objective (MB020014)
  • 60x Plan achromatic objective (MB020016)
  • Eurekam / Eurekam PRO digital cameras
  • Protection cover
  • Oil bottle
  • User manual
