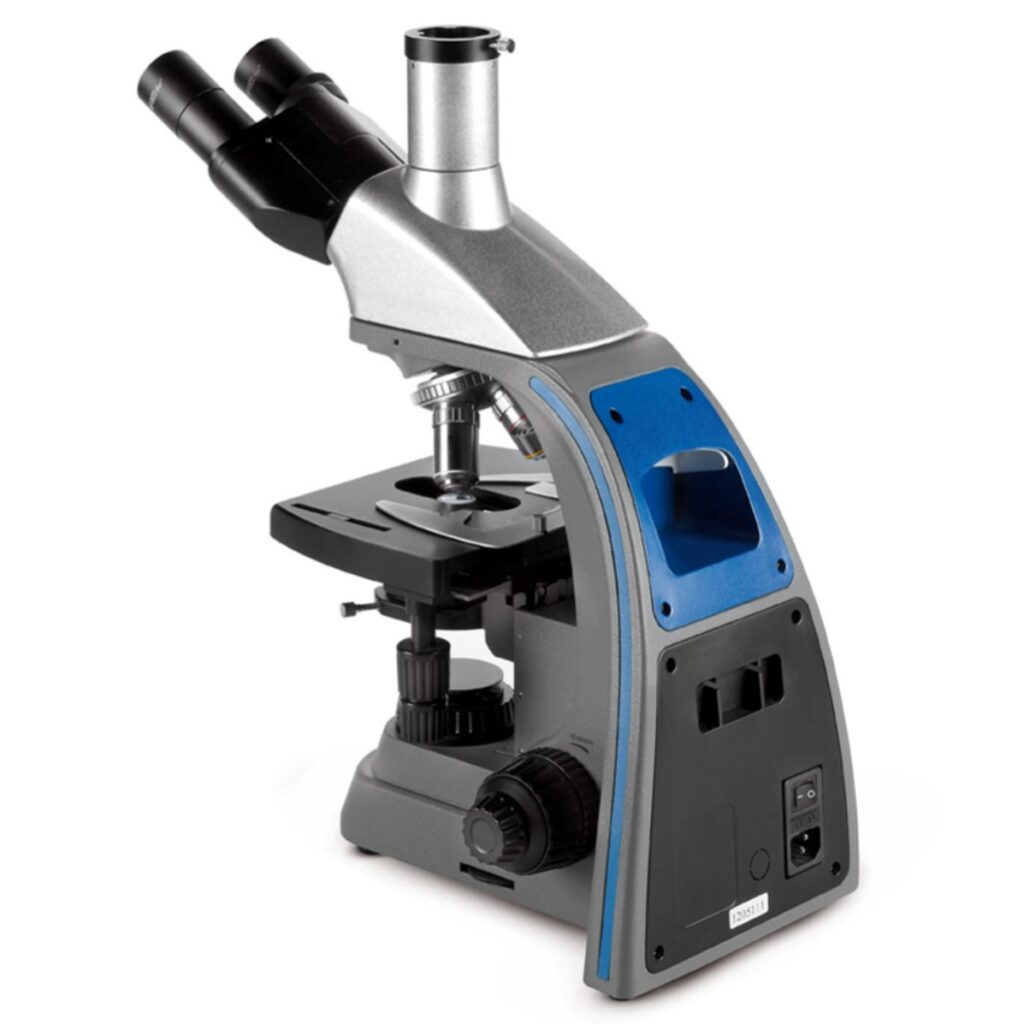

Mikroskop Biologi – BEL Engineering Type Solaris

Mikroskop Biologi - BEL Engineering Type Solaris

Mikroskop Biologi - BEL Engineering Type Solaris



Produk: Mikroskop Biologi

Merek: BEL Engineering

Tipe: Solaris Binocular/Trinocular

Negara: Italia

Seri mikroskop biologis SOLARIS buatan BEL Enginering ini menggabungkan pengalaman dan desain dalam satu solusi.

Mikroskop biologis ini tersusun Plan-achromatic, Koehler illuminator, eyepieces Extra Widefield, lima kali lipat nosepiece miring ke dalam, dan LED putih hangat berintensitas tinggi untuk mendapatkan warna yang sangat andal atau lampu halogen 30W untuk intensitas maksimum.

Mikroskop biologis SOLARIS memiliki sistem optik infinity untuk kinerja optik terbaik. Semua fitur ini membuat Mikroskop ini cocok untuk penelitian, penggunaan laboratorium, dan operasi bidang medis.



Optical system Infinity corrected optics system
Illumination Built-in transmitted Koehler illumination with field diaphragm.
6V 30W Halogen bulb or High intensity LED (Warm white).
Adjustable Intensity
Eyepieces Extra Wide field WF10x/22mm
Objectives PLAN ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 (oil immersion)
Focusing Macrometric and micrometric coaxial knobs on both sides (0,002mm). Upper limit excursion adjustment. Torque adjustment on coarse focus knob
Revolving nosepiece Reversed quintuple nosepiece, rotating and locking at every objective.
Observation tube Type Binocular Trinocular
Tube inclination 30° tilted, 360° rotable
Interpupillary distance adjustment 48-75mm, dioptric difference adjustment ± 5mm
Light path selector 100% – 0%  or  0% – 100%
Stage 193x155mm. Excursion XY: 75x50mm (division 0,1mm). Coaxial knobs on right side.
Condenser Abbe condenser, N.A. 1,25. Equipped with diaphragm and filter seat. Height and centering are adjustable.
  • Phase contrast kit
  • Dark field
  • Micrometric slide 0.01mm
  • Micrometric eyepiece 10x
  • Polarization kit (analyzer+polarizer)
  • 20x Plan achromatic objective
  • 60x Plan achromatic objective
  • Eurekam / Eurekam PRO digital cameras
  • Protection cover
  • Oil bottle
  • User manual



Harga: (kontak kami)
