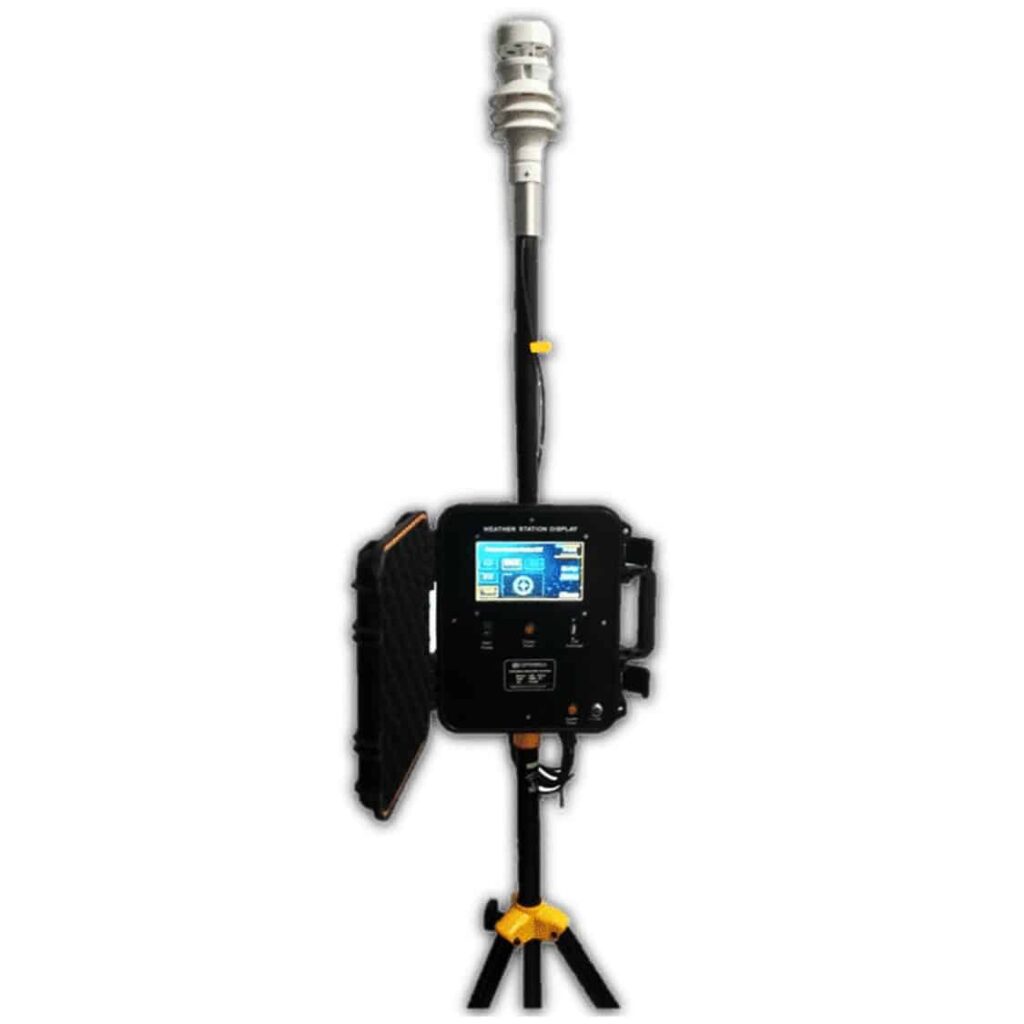

PWS-Pro Portable (Alat Ukur Cuaca)

SENSORS SPECIFICATION:

IP Class: IP65
Dimensions (HxΦ): 250 x 160 mm
Weight: 1.4 kg
Power: 145 mA @12V DC
Digital outputs(RS-485): Baud rate 9600 (Default)
Operating voltage: 12 … 30 VDC
Operating temperature: -40 … +70o °C
Operating humidity: 5% … 100% RH
Connector: 4 Pin
Cable: PUR 5 m

Humidity:
Principle: Capacitive
Measurement range: 0 … 100% RH
Accuracy: ±3% RH
Resolution: 0.1% RH

Wind Direction:
Principle: Ultrasonic
Measurement range: 0 … 359.9 °
Accuracy: ±3 °
Resolution: 0.1 °

Rainfall:
Principle: Piezoelectricity
Measurement range: 0 … 200 mm/h
Accuracy: ±5%
Resolution: 0.1 mm/h

Temperature:
Principle: Diode voltage
Measurement range: -40 … +80 °C
Accuracy: ±0.5 °C
Resolution: 0.1 °C

Wind Speed:
Principle: Ultrasonic
Measurement range: 0 … 45 m/s
Accuracy: ±0.3 m/s or 3% of reading, whichever is greater
Resolution: 0.1 m/s

DATA LOGGER / RTU (REMOTE TERMINAL UNIT)

CPU: Intel Atom Z8350
Core: Quad Core
GPU: Intel HD Graphics 400
RAM: 4 GB
RAM Type: DDR3
ROM: 64 GB
Max. Extended Capacity: SD card up to 64 GB (not included)
Media Supported
Decoder Format: H.263, H.264, HD MPEG4
Video format: AVI, DAT, ISO, MKV, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG, RM, WMV
Audio format: AAC, APE, FLAC, MP3, OGG, RM, WMA
Photo Format: GIF, JPEG, PNG
Support 5.1 Surround Sound Output: Yes
Product Details
5G WiFi: Yes
WIFI: 802.11 b/g/n/ac
Bluetooth: Bluetooth 4.0
Power Supply: Charge Adapter
Interface: 3.5 mm Audio, DC Power Port, HDMI, LAN, SD Card Slot, USB 2.0, USB 3.0, VGA
Language: English
HDMI Version: 1.4
Other Functions: Others
Power Consumption.: 12 W
RJ45 Port Speed: 1000 Mbps
Firmware Information
System Bit: 64 Bit
WiFi Chip: AP 6255
Case Size: 13.6″ x 11.6″ x 6.3″
Super strong contruction – waterproof & dustproof (IP65 rated)
Pressure Relief Valve to equalize pressure for easy openings
