| Standards |
- IEC 61252:1993 +AMD1:2000 Personal Sound Exposure Meters
- IEC 61252 Ed 1.1 (2002-03) Personal Sound Exposure Meters
- ANSI S1.25:1991 (R2017) Personal Noise Dosimeters
- IEC 61260-1:2014 Class 2 (Octave Bands from 63Hz to 8kHz)
- ANSI S1.11-2014 Class 2 (Octave Bands from 63Hz to 8kHz)
|
| Measurement Range |
- RMS Range: 60 dB – 140 dB (A)
- Peak Range: 80 dB – 143 dB (C)
- Octave Bands: 70 dB – 140 dB (A)
|
| Measurement Functions |
- 4 Simultaneous Independent Integrator Channels
- 2 Simultaneous Independent Peak Channels
- 1:1 Octave Bands (63Hz to 8kHz)
|
| Overall Measurement Parameters |
- Measurement duration, Start time & date, Instrument serial number & name
- Calibration information (field & factory calibration), Overload & Tamper sensor detection
|
| Overall Integrator Parameters |
- Average Integrated Sound Level (Leq/LAVG), Time Weighted Average (LEP,d/LEX,8/TWA)
- Sound Exposure & Estimated Sound Exposure, % Dose & Estimated % Dose, ULT Duration
- SPL Max Level & Time, SPL Min Level
|
| Overall Peak Channel Parameters |
- Overall LPeak level for each channel (Up to 2 channels)
|
| Overall Octave Band Parameters |
- Overall unweighted Leq for each octave band (63Hz to 8kHz)
|
| Communication |

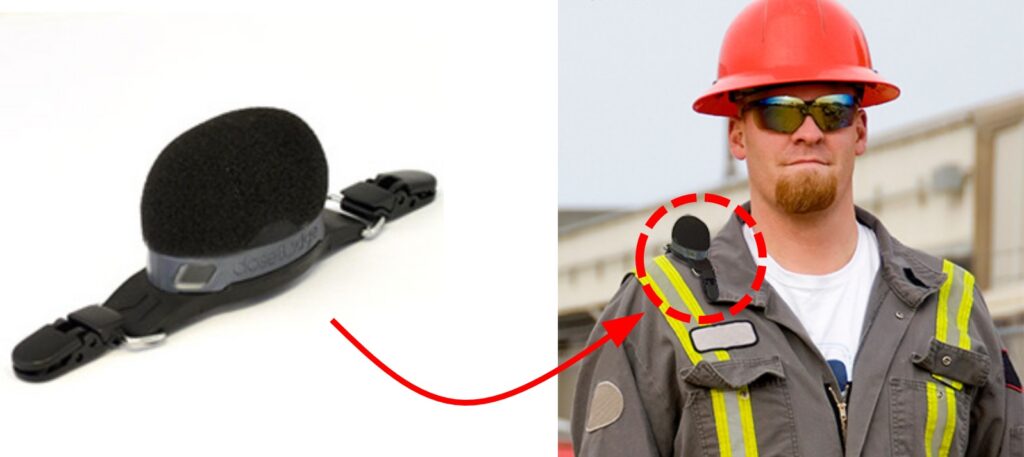

- Bluetooth® Wireless communication to the doseBadge5 dBControl
- Bluetooth® Wireless communication to the dBLink App (Android & iOS)
- USB download to NoiseTools via the doseBadge5 Dock
|
| Integrator Channel Options |
- Channel name – Preset or user defined
- Exchange rate – 3, 4 or 5 dB
- Criterion Level – 80 dB to 100 dB in 1 dB steps
- Criterion Time – 1 hr to 24 hrs in 1hr steps
- Threshold Level – None, 70 dB to 100 dB n 1dB steps
- Time Weighting – Fast, Slow or None
- Frequency Weighting – A, C or Z
- ULT Level – 70 dB to 140 dB in 1 dB steps
- ULT Time Weighting – None, Fast or Slow
- ULT Freq. Weighting – A,C, or Z
|
| Peak Channel Options |
- Frequency weighting – A,C or Z (2 channels)
|
| Calibration |
- Automatic detection of external acoustic calibration
- User configurable calibration level (typically 114dB or 94dB)
|
| Data Logging |
- 1 second – 1 minute time history data (user selectable)
|
| Memory |
- Up to 80 hours of Time History Data for each channel including 1:1 Octave Bands
- Up to 40 individual measurements
- Maximum duration of any single measurement: 24 hours
|
| Dimensions |
- 66 x 43 x 53 mm (excluding clips)
- 2.53” x 1.69” x 2.01” (excluding clips)
- 85 g/2.9 oz
|
