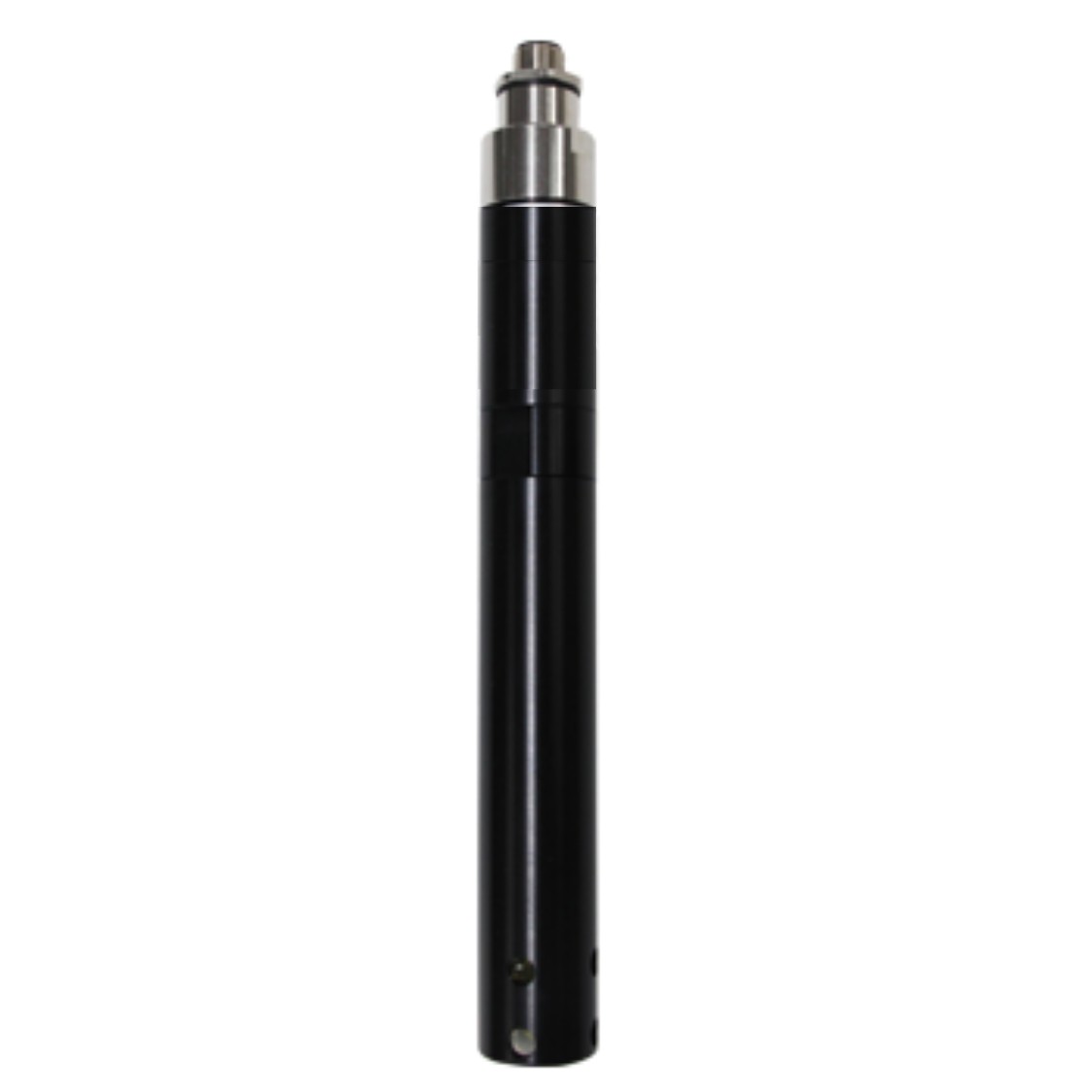

ORP Analyzer Sensor

ORP Analyzer Sensor

ORP Analyzer Sensor

ORP Analyzer terhubung langsung melalui antarmuka komunikasi RS485, menyediakan data proses yang sederhana, andal, hemat biaya dengan kemampuan pemantauan, kalibrasi, konfigurasi, dan diagnostik jarak jauh.


  • High reliability and drift free
  • Data monitoring and software configuration calibration
  • Water submersible enclosure and solution without cabinet
  • Ideal for outdoor applications and 0.05 w ultra low power consumption
  • Temperature compensation
  • Surge and protection for power
  • Digital communication, minimize cabling, and engineering cost
  • Eliminate i/o module cost, standard modbus rtu protocol, direct connected with plc, and hmi
  • On-line realtime measurement 1 second
Measurement range  -1,000 ~ 1,000 mV
Accuracy ±5 mV
Resolution 0.1 mV
Repeatability ±0.5 mV
Operation pressure Max. 10 Kgf/cm2
Operating temperature 0 ~ 85 °C
Process flow rate 0.1 l/min
Response time 1 sec
Protection IP68
Process Connection M26x1.5
Sensor Material Glass
Housing Material POM
Dimension Φ 26 Χ 221 mm
Weight analyzer: approx. 150 g (POM); 500 g (SS316L); 400 g (Titanium)
cable: 80 g/m
